PRODUCT VIEW
Brake cooling system suitable for Toyota Supra MK5 Gen.2
Brake cooling system suitable for Toyota Supra MK5
Expected delivery time: 14-28 working days
From: 380,00 €
incl. 19 % VAT.
Additional information
| Vehicle manufacturer | |
|---|---|
| Vehicle type | |
| Axis | Front axle |
Braided steel brake hose set suitable for Toyota Supra MK5 258 PS VA +HA
| Vehicle manufacturer | Toyota |
|---|---|
| Model | SUPRA MK5 |
Braided steel brake hose set suitable for Toyota Supra MK5 340 hp VA + HA
| Vehicle manufacturer | Toyota |
|---|---|
| Model | SUPRA MK5 |
ENDLESS brake pads suitable for BMW G Series M Brake G29 Z4, Toyota Supra MK5, G20 M340i, G30 G31 530
| Vehicle manufacturer | |
|---|---|
| Vehicle type | |
| Axis | Rear axle, front axle |
| Coating mixture | MX87, N39S |
Product information
"Our part has to work and have a technical advantage in addition to its appearance, otherwise we won't build it." - Speed Engineering GmbH
All parts were not only developed but also manufactured in Germany and are therefore 100% Made in Germany!
New generation! We have revised and improved our parts to create more space for the rim!
Do you want maximum performance?
At the front you can upgrade your cooling twice with our Clubsport cooling, in addition to your cooling: https://www.speedengineering.de/produkt/bremsenkuehlung-bmw-m2-g87-m3-g80-und-m4-g82-va-set/
Don't forget the rear axle: https://www.speedengineering.de/produkt/bremsenkuehlung-passend-fuer-bmw-f20-toyota-supra-mk5/

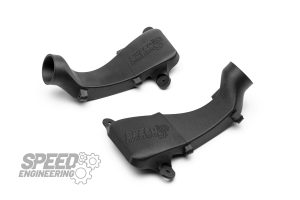

Air duct inlet:
In order to transport the air to the brake ventilation outlet, a suitable inlet is essential. The Supra has an air duct in the wheel arch in front of the wheel, through which the air is to be directed into the wheel arch. To prevent the air from swirling randomly in the wheel arch, we have developed an extension to the air duct which can be fitted with minimal effort, guides the air around the wheel and connects the air duct to our outlet via a hose (on each side). On some models, a small piece of the wheel arch liner has to be cut out to create space for the duct so that it can be fitted without tension.

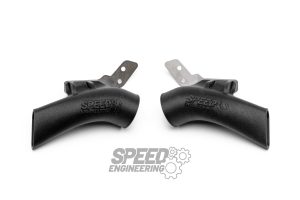

Air duct outlet:
Here too, the brake disk must be supplied with air as centrally as possible. The brake disk of the Supra has a very small pot, so we refrained from developing a classic anchor plate. However, in order to make use of the turbine effect of the brake disc, we have developed a brake cooling system which is mounted on the wheel carrier and flows air to the center of the disc regardless of the wheel position. It is simply attached using existing screw-on points and without any permanent changes to the vehicle. A major advantage over a new anchor plate: regardless of the wheel position, the system does not pivot. This means that the hose is not under permanent load and we have the option of transporting the air via a very short hose, thus reducing losses.

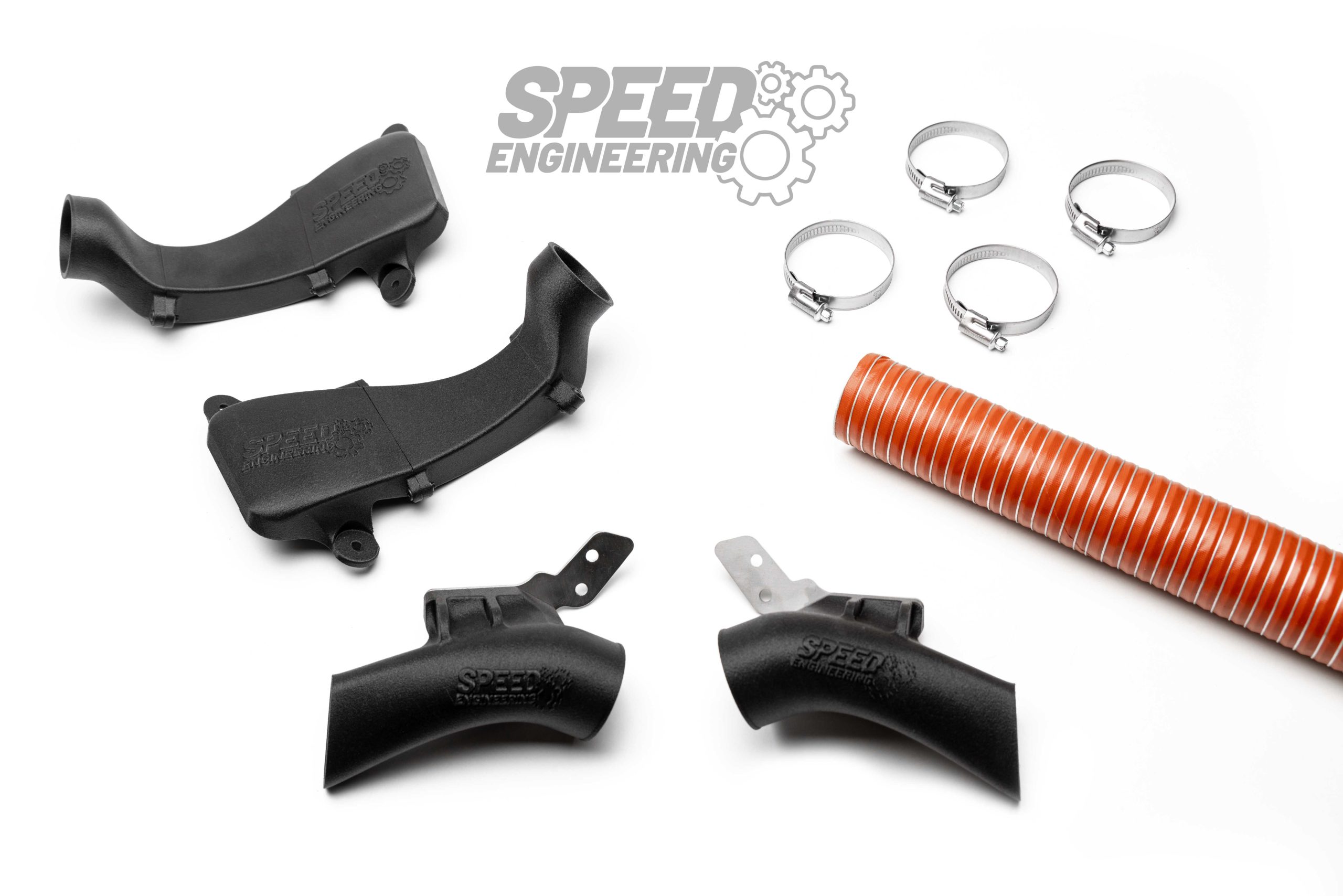

Included in the scope of delivery:
- 1x air duct inlet for the left front axle
- 1x air duct inlet for the right front axle
- 1x air duct outlet for the left front axle
- 1x air duct outlet for the right front axle
- 1x air hose (1 meter)
- 4x hose clamps
Article is suitable for
- Toyota Supra MK5
- BMW Z4 G29
Motorsport parts without road approval We explicitly point out that none of our products offered for sale are original vehicle parts from the vehicle manufacturers BMW AG, M GmbH, MINI, VAG or other vehicle manufacturers. The naming of vehicle brands and models is only for the purpose of product identification and their allocation to the appropriate vehicle type.
The different models vary slightly in wheel position, coupled with different chassis geometries and wheel and tire combinations, it becomes impossible for us to cover all variants. In the worst case scenario, the wheel could rest slightly on the ground at full steering lock (which should only be the case when parking), which may not cause any damage to the tire. In this case, we would ask you to refrain from the last ¼ of the steering turns.
Want to find out more about the product? Then watch the video:
Expected delivery time: 14-28 working days
